Cat 6 Network Cable, UTP Cat 6 Cable, Bare Copper, Indoor, 24AWG, 0.51mm Application
TC's UTP-13/23 series, indoor Cat 6 unshielded cabling system invests in new AWG24 conductors with smaller diameter.
Apart from ease of installation, it has test frequency up to 250MHZ. In the meantime, it supports the latest 5G Base-T applications and Power Over Ethernet (POE/POE+).
Product Features

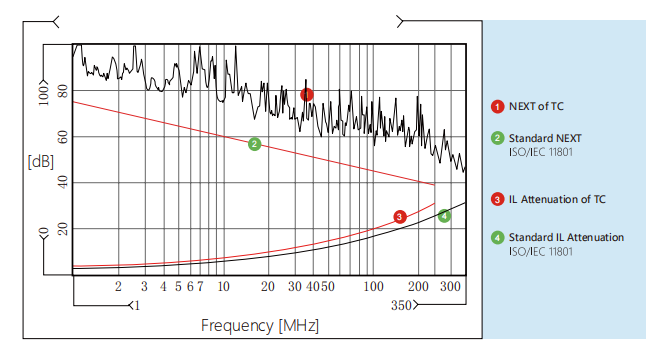

TC's Cat 6, 24 AWG, 4-pair, unshielded indoor cable adopts the excellent cross-type spline, optimized to greatly enhance technical indicators, including Attenuation and NEXT, which exceed the parameters specified in GB/T 18015.5 (IEC 61156-5) standards and ensure high-speed and stable cable transmission.
Its smaller size makes it easier for field construction. At the same time, it acts on the requirements for high transmission in data center, and structured cabling in new buildings.
Application Standards
GB/T 18233 (ISO/IEC 11801); GB 50311; TIA/EIA568-C.2
Technical Details
| Physical Specifications |
| Conductor Size (nominal value) | 4×2×0.51 (AWG24) |
Outer Diameter of Cable (nominal
value) | |
Weight (305m, with package,
nominal value) | 13kg |
| Electrical Properties |
| DC resistance (20℃ ) | 93.8Ω/km |
| Earth Capacity | ≦ 5.6 nF/100m (@1kHz) |
| 100MHz Characteristic Impedance | 100Ω±15Ω |
| Transverse Conversion Loss (TCL) | ≥ 55dB-20×lgf (100-2000MHz) |
| Delay Skew | 25ns/100m |
| NVP | 65% |
| Power Over Ethernet (POE) | Enhanced Power Over Ethernet under IEEE 802.3at |
| Mechanical Properties |
| Minimum Bend Radius (dynamic) | 24mm |
| Minimum Bend Radius (static) | |
| Maximum Installation Tension | 100N |
| Anti-Extrusion Capacity | 1000N/10cm |
| Anti-Shock Capacity | ≥ 10 times |
| Installation Temperature Range | -0℃ ~+40℃ |
| Working Temperature Range | -20℃ ~+75℃ |
| Flammability (LSZH) |
| Flame Resistance (of single wire) | GB/T 18380.12 (IEC 60332-1-2) |
| Smoke Density | GB/T 17651 (IEC 61034-1/-2) |
| Hazardous Halogen Gas | GB/T 17650.1/.2 (IEC 60754-1/-2) |
